Cupola Mounting Options
The options for mounting a cupola vary depending on the type of cupola you buy.
Standard Cupola Mounting Options

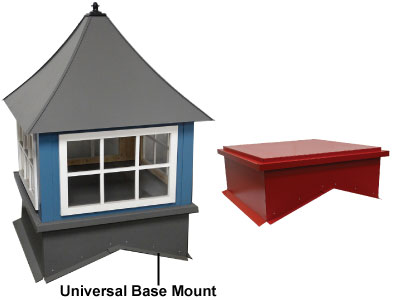

Universal Base
Factory assembled universal base requires no field fabricated wooden curb. The base installs over your roof. Ships ready for a 4:12 pitch, but easily adapts to any pitch 1:12 - 6:12. Side trims included.

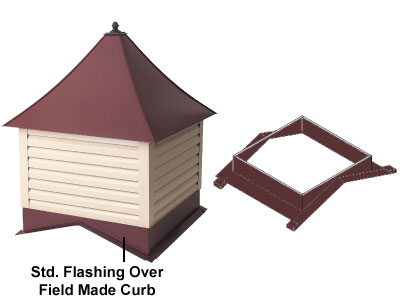

Assembly InstructionsStandard Flashings
6 piece flashing kit is istalled over the top of a wooden field fabricated curb to cover the sides and complete the cupola. Specific roof pitch must be specified when ordering.

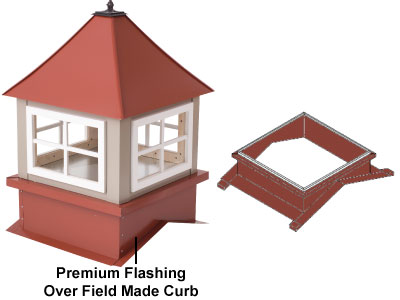

Assembly InstructionsPremium Flashings
10 piece flashing kit is istalled over the top of a wooden field fabricated curb. It raises the cupola 3 1/2 inches higher and gives the sides a fuller look. Roof pitch must be specified when ordering.

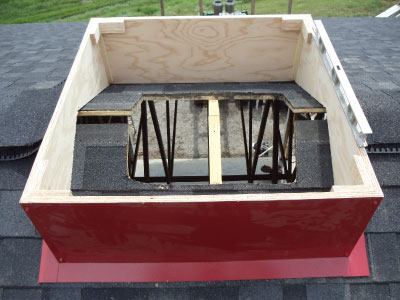

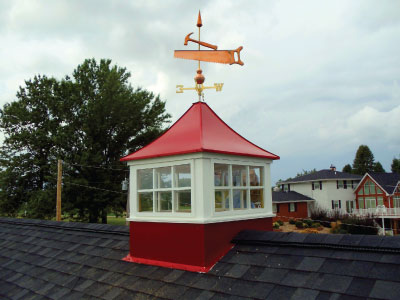

Assembly InstructionsWind Rated, Octagon, and Copper Cupola Mounting Option
Wind rated, octagon, and copper cupolas come standard with a pre-assembled base mount. It is constructed of wood with metal flashings over the top to complete the cupola look. It is availble in two options: standard - up to 6:12 roof pitch, or extended - higher than 6:12 roof pitch.

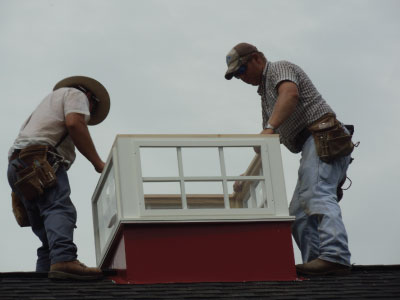

*It is recommended to wear safety equipment when working at heights over 6 ft, in accordance with OSHA guidelines i.e. harnessess and lanyards
Assembly Instructions
