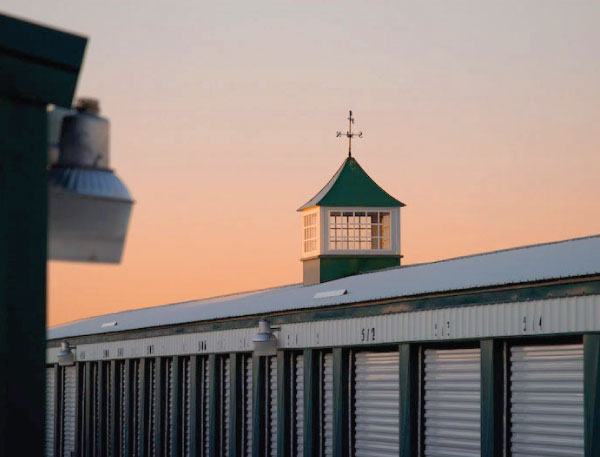

Wind Rated Vinyl Cupolas

• Available in 24", 36", 48", 60", or 72" base size
• Choice of louver or window sides
• Approved for up to 120 mph wind speeds, when proper installation is followed
• Roof includes base for easy weathervane mount
• Metal roof with vinyl sides
• Base mount constructed of a wood curb with metal flashings
• Accomodates up to 6:12 roof pitch
• Ships in 3 sections for easy assembly at job site
• Pre-Painted to match your building
• 18 colors available
• Hemmed metal edges to aid in the prevention of rusting
• Interlocked roof and sides for a weather tight connection
• Assembly instructions included

Cupola Size	24"x24"	36"x36"	48"x48"	60"x60"	72"x72"
Total Height	36"	52"	67"	87"	102"

*Height does not include weathervane
