Cupola Assembly
Our cupolas ship knock down in 4 sections: Weathervane (if ordered) Roof, Sides, and Base option.
*It is recommended to wear safety equipment when working at heights over 6 ft, in accordance with OSHA guidelines i.e. harnessess and lanyards

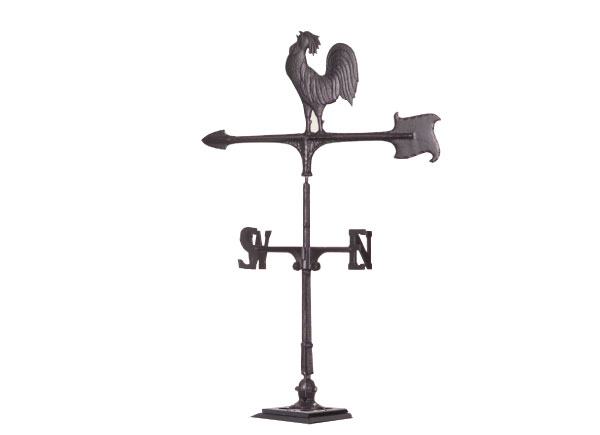

Optional weathervane installs on top of the roof. Available in several sizes and varieties.

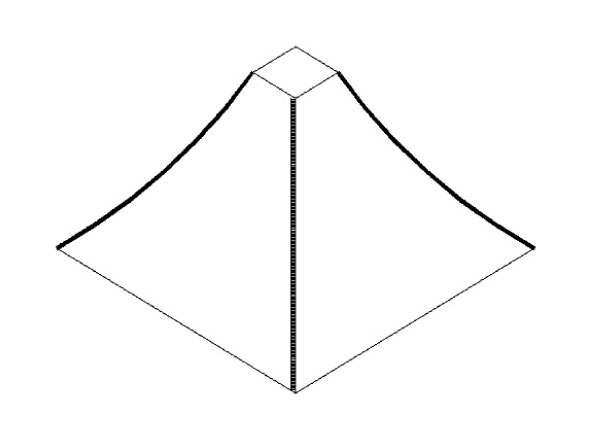

Roof section installs on top of the side section.

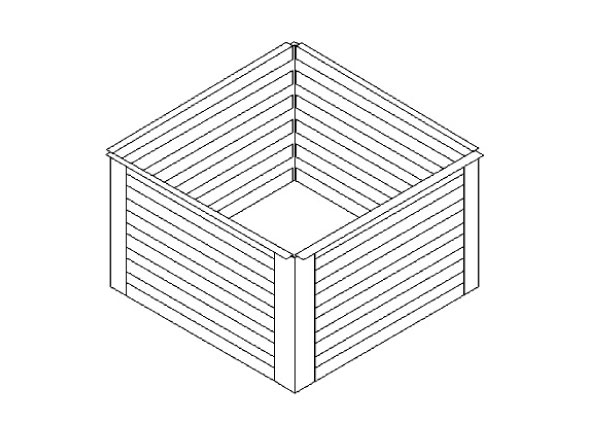

Optional louver sides install on top of the field assembled curb, or pre-assambled base unit.

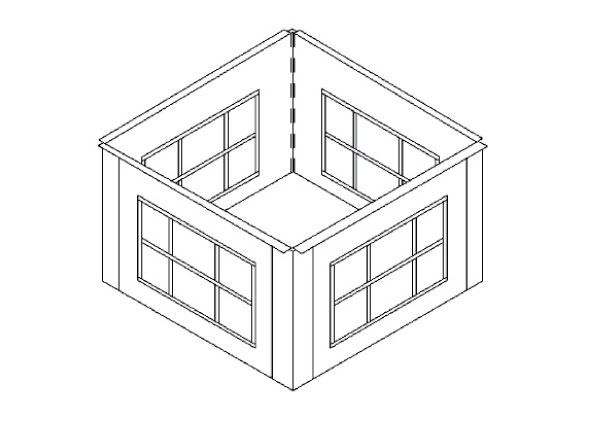

Optional window sides install on top of the field assembled curb, or pre-assambled base unit.

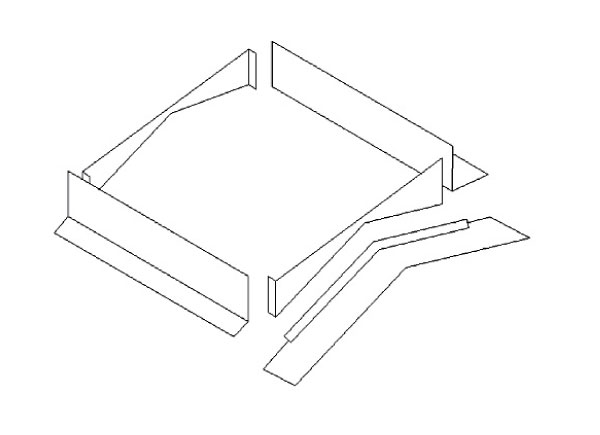

Optional 6 piece standard flashing kit installs over the top of the field assembled curb to cover and trim the curb, on top of the roof. Specific roof pitch must be specified at the time of order.

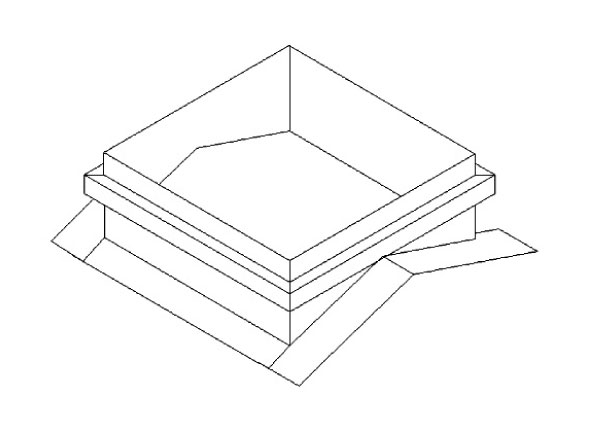

Optional 10 piece premium flashing kit installs over the top of the field assembled curb to cover and trim the curb, on top of the roof. (Frame adds 3 1/2" higher than standard flashings) Specific roof pitch must be specified at the time of order.
Optional factory assembled base requires no wooden curb to be built in the field. Installs on top of the roof. Adjustable to fit roof pitch.
